Description

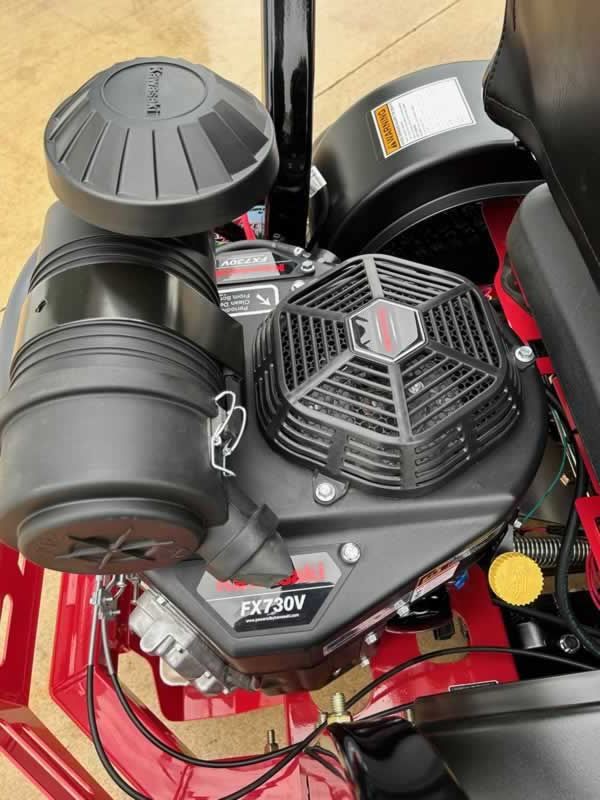

| ENGINE | Kawasaki FX730V |
|---|---|
| HORSEPOWER | 23.5 HP |
| CYLINDERS | 2 |
| OIL CAPACITY | 2.1 qt (2.0 L) |
| DRIVE SYSTEM | Hydro-Gear® ZT-3400 |
| FUEL CAPACITY | 7 Gallon |

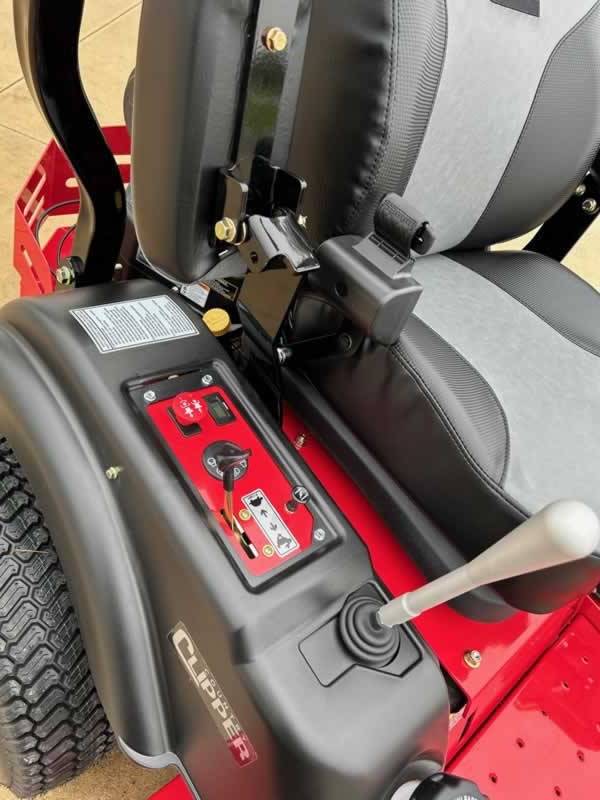

| STEERING CONTROL | Joystick |
| STAND-UP DECK | Standard |
| CONTOURDTS™ EQUIPPED | Standard |
| TIRES, REAR | 22×11-10 |
| TIRES, FRONT | 13×6.5-6 |
| TURNING RADIUS | Zero-Turn |
| GROUND SPEED (FORWARD / REVERSE) | 9 mph/5 mph |
| LENGTH | 79″ |
| HEIGHT : TOP OF ROPS EXTENDED | 75″ |
| HEIGHT : TOP OF ROPS FOLDED | 49″ |
| WIDTH, TRACTOR (OUTSIDE REAR TIRES) | 49″ |
| WIDTH, DECK W/ CHUTE | 73″ |
| WIDTH, DECK CHUTE UP | 61″ |
| CUTTING WIDTH | 60″ |
| CUTTING HEIGHT | 1.5″ – 5″ (1/4″ increments) |
| DECK CONSTRUCTION | Laminated Welded 12 Gauge Steel Deck with 10 Gauge Strategic Reinforcements, including protective bullnose front & high impact anti-scalp rollers; 3/8″ x 2″ wear bar on trim edge |
| DECK ENGAGEMENT | Electric Clutch, Ogura |
| BLADE LENGTH | 21″ |
| SPINDLE ASSEMBLY | Cast aluminum housing; 1″ diameter shaft; maintenance free |
| BLADE TIP SPEED, APPROX. | 18,000 fpm |
| WEIGHT | 972 lbs |

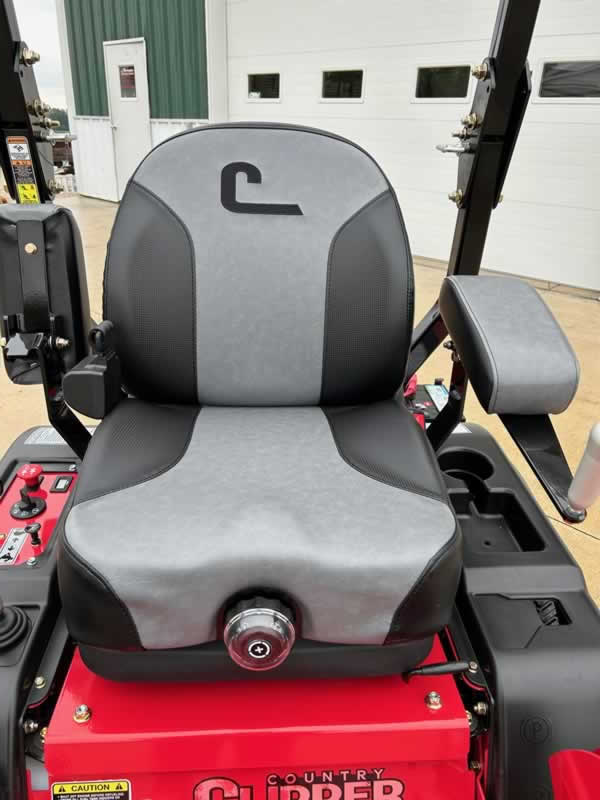

| SEAT | Suspension Seat with 2-1/4″ Adjustable Travel, Vibration Isolators, Adjustable Seat Back Recline, Seat Back Pocket and Hinged Arm Rests (left hand arm rest not hinged on Joystick models) |
| OTHER STANDARD FEATURES | Arm Rest, Cup Holder, Electric Start, Front Step, Hitch Plate, Hour Meter |
