Description
Feature | Specifications |
---|---|

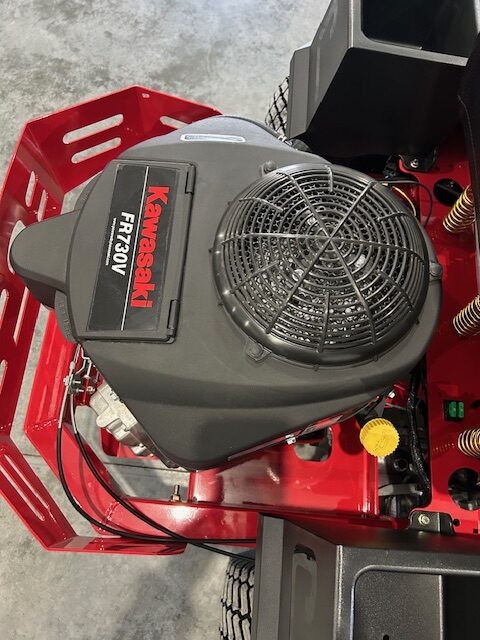

Engine | 24 HP Kawasaki® FR730V, |
Horsepower | 24 |
Cylinders | 2 |
Oil Capacity | 2 qt (1.9 L) |
Drive System | Hydro-Gear® ZT3100 |
Hydro Oil Cooler | N/A |
Fuel Capacity | 5 Gallon |

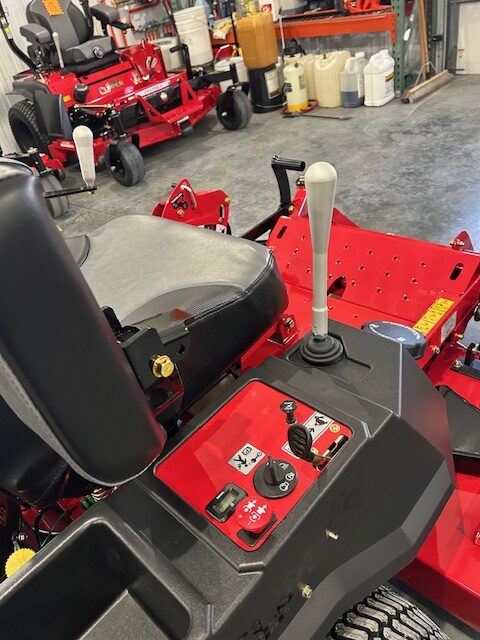

Steering Control | Joystick |
Stand-up Deck | Standard |
Pivoting Front Axle | Standard |
Roll-Over Protection | N/A |
Tires, Rear | 22×11-10 |
Tires, Front | 13×6.5-6 |
Turning Radius | Zero-Turn |
Ground Speed (Forward/Reverse) | 8 mph/4 mph |
Length | 79″ |
Height : top of seat back | 48″ |
Height : top of ROPS extended | N/A |
Height : top of ROPS folded | N/A |
Width, Tractor (outside rear tires) | 49″ |
Width, Deck w/ Chute | 65″ |
Width, Deck Chute Up | 53″ |
Cutting Width | 52″ |
Cutting Height | 1.5″ – 5″ (1/4″ increments) |
Deck Construction | Welded 12 Gauge Steel Deck with 10 Gauge Strategic Reinforcements, including high-impact anti-scalp rollers, 3/8″ x 2″ wear bar on leading & trim edge |
Deck Engagement | Electric, Ogura® |
Blade Length | 18.375″ |
Spindle Assembly | Cast Aluminum housing; 1″ diameter shaft; maintenance free |
Blade Tip Speed, approx. | 18,000 fpm |
Weight | 814 lbs |
Seat | High Back, Enhanced Comfort Seat with adjustable slides |
Other Standard Features | Hour Meter, Electric Start, Arm Rest, Cup Holder, Front Step, Hitch Plate |
