Description
Engine

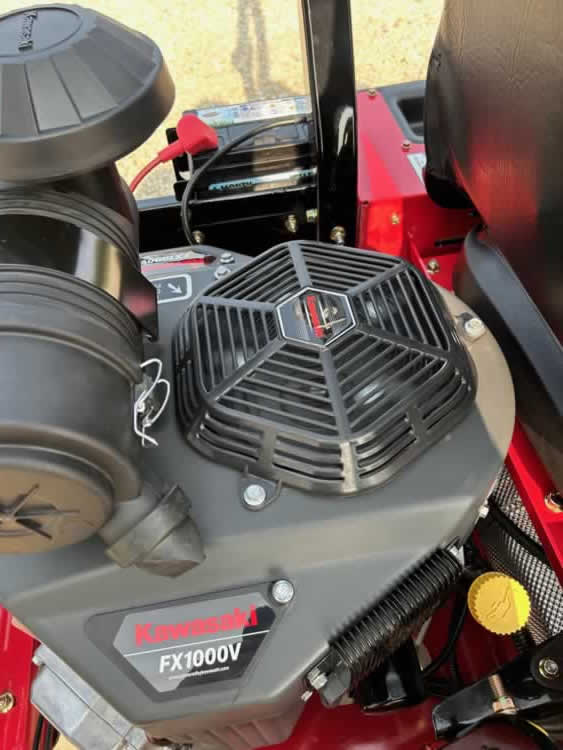

35 hp Kawasaki® FX1000V
Horsepower
35
Cylinders
2
Oil Capacity
2 qt (1.9 L)
Drive System
Hydro-Gear® ZT-5400
Hydro Oil Cooler
Standard
Fuel Capacity
10.25 Gallon
Steering Control
Joystick
Stand-up Deck
Standard
Pivoting Front Axle
Standard

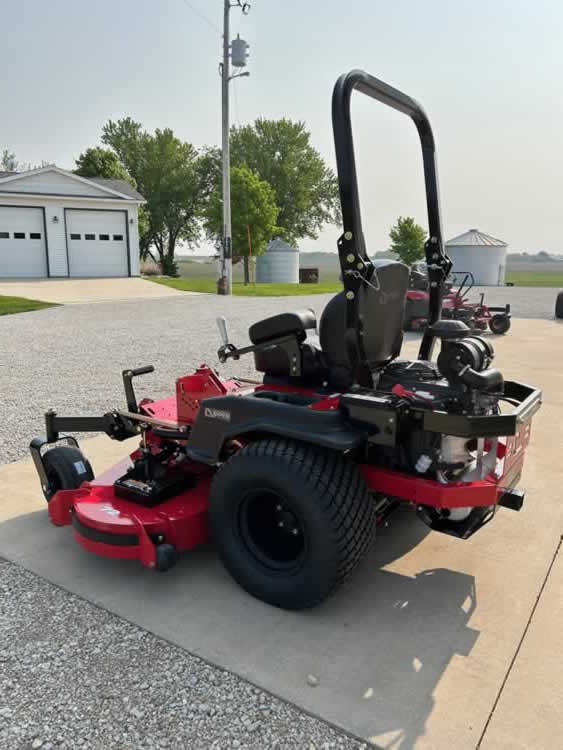

Roll-Over Protection
Standard
Tires, Rear
26×14-12
Tires, Front
15×6-6
Turning Radius
Zero-Turn
Ground Speed (Forward/Reverse)
12.5 mph/7.5 mph
Length
85″, 87″
Height : top of seat back
N/A
Height : top of ROPS extended
76″
Height : top of ROPS folded
49″
Width, Tractor (outside rear tires)
59″
Width, Deck w/ Chute
85″
Width, Deck Chute Up
73″
Cutting Width
72″

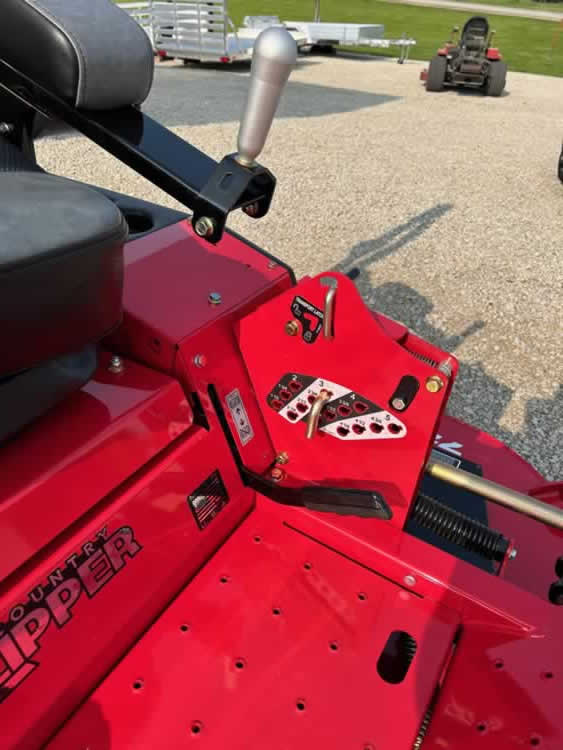

Cutting Height
1.5″ – 5″ (1/4″ increments)
Deck Construction
Laminated Welded 10 Gauge Steel Deck with 10 Gauge Reinforcement and additional 7 Gauge Spindle Mounting Reinforcement, protective bullnose front, high impact anti-scalp rollers and wear bar
Deck Engagement
Electric, Ogura®
Blade Length
25″
Spindle Assembly
Cast iron housing; 1.5″ diameter shaft; maintenance free & field serviceable
Blade Tip Speed,
approx. 19,000 fpm
Weight
1434 lbs

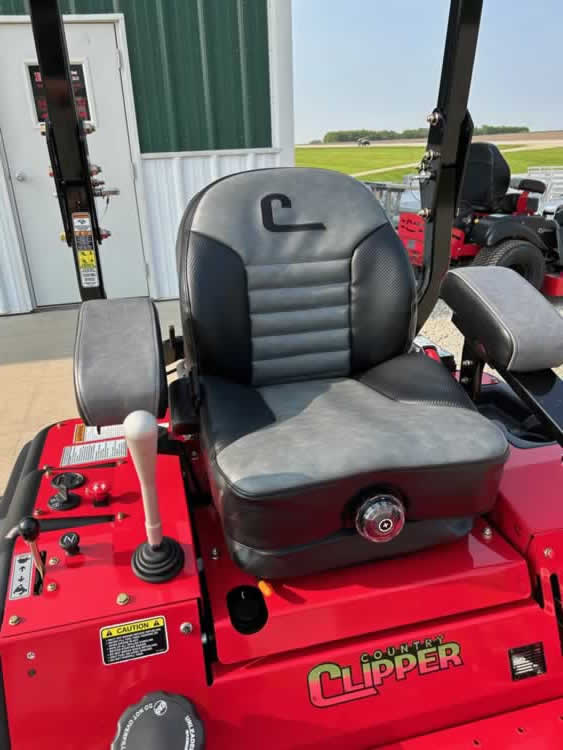

Seat
Suspension Seat with 3″ Adjustable Travel, Vibration Isolators, Adjustable Seat Back Recline, Adjustable Lumbar Support and Adjustable Arm Rests
Other Standard Features
Hour Meter, Electric Start, Cup Holder, Storage Tray, Front Step, Electric Fuel Gauge, Trailer Hitch Receiver
